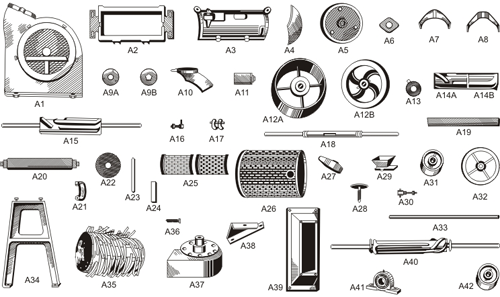

Rice Hullers, Polishers & Spares     Rice Huller Nos. 1, 7 & 3 “Adico” Rice Hullers & Polishers Size of Machine No. 1 No. 7 No. 3 Output of Cleaned Rice per hour from paddy (in kgs.) 225/300 125/225 60/100 Output of Cleaned Rice per hour from shelled rice (in kgs.) 500/600 225/375 125/165 Size of driving pulley 12”x5” 14”x5” 12”x4” Speed in RPM 700/800 750/900 750/900 Power required – B.H.P. 16/18 12/14 10/12 Nos. 2, 8 &4 “Adico” Rice Hullers Only Size of Machine No. 2 No. 8 No. 4 Output of Cleaned Rice per hour from paddy (in kgs.) 225/300 125/225 40/60 Output of Cleaned Rice per hour from shelled rice (in kgs.) 500/600 225/375 75/125 Size of driving pulley 12”x6” 10”x5” 8”x4” Speed in RPM 700/800 750/900 750/900 Power required – B.H.P. 12/14 10/12 5/6       Rice Huller Spares   Top ▲     Spare Parts For Machine No. 1, 2, 7 & 8 Part No. Description Part No. Description Part No. Description A1 Side Frames (State if Open or Closed) A14B Cylinder Shell, Outlet End, Chilled Iron A30 Blade Adjusting Screw A2 Huller Frame A15 Hulling Cylinder with Shaft A31 Pulley, Drive to Polisher A3 Huller Cover A16 Hinge A32 Pulley on Polisher Shaft A4 Outlet Spout From Polisher A17 Blade Adjusting Head A33 Polisher Shaft A5 Cast Iron Ends of Polisher A18 Hulling Cylinder Shaft A34 Cast Iron Leg A6 Inlet to Polisher Drum A19 Upper Screen Holder (Front and Rear) A35 Polisher Drum with Leather Strips A7 Lower Screen Holder A20 Hulling Blade A36 Fixture For Upper Screen Holders A8 Lower Screen Holder Support A21 Cover Clamp A37 Fan Complete A9A Cylinder Nut, Right Hand A22 Leather Washer A38 Cast Iron End Bracket (No. 8 Huller) A9B Cylinder Nut, Left Hand A23 Polisher Strip – Leather (Narrow) A39 Cast Iron Base ((No. 8 Huller) A10 Outlet Spout From Huller A24 Polisher Strips – Leather (Wide) A40 Hulling Cylinder with Shaft (Nos. 7, 8 & 3, 4 Machines) A11 Outlet Spout Cover A25 Huller Screen, 2 Pieces A41 Ball Bearing Plummer Block A12A Main Driving Pulley A26 Polisher Screen A42 Pulley, Drive to Fan A12B Cast Iron Flywheel A27 Outlet Slide on Huller     A13 Loose Collar A28 Handwheel for Clamp     A14A Cylinder Shell, Feed End, Chilled Iron A29 Cast Iron Hopper Seat       Due to continuous improvements, we reserve the right to modify, change or alter any of the dimensions, llustrations, technical specifications without any prior notice. « Back Top ▲
